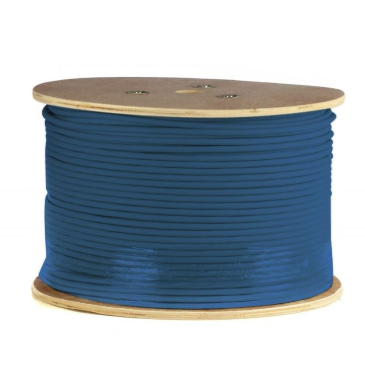

7834ANH006U1000
CAT6 Cable
The Belden CAT6 UTP cable is a premium‑grade networking cable engineered for reliable high‑speed data transmission in structured cabling systems. Designed to meet the demanding requirements of modern Ethernet and PoE (Power over Ethernet) networks, this cable is perfect for corporate, data center, and commercial installations that require robust connectivity and long‑term performance. Belden’s cables are known globally for durability, consistency, and compliance with industry standards — making them a top choice among IT professionals, system integrators, and installation teams.
Key Features
Category 6 Performance: Supports data transmission frequencies up to 250 MHz, ideal for Gigabit Ethernet, fast LAN links, and other high‑speed network protocols.
Solid Copper Conductors: Utilizes 23 AWG solid bare copper wires in 4 twisted pairs, ensuring excellent electrical properties, reduced signal loss, and enhanced reliability over long cable runs.
Unshielded Twisted Pair (UTP): Efficient design with UTP construction that simplifies installation and works well in environments with moderate electrical noise.
LSZH / Eca Jacket Options: Available with Low Smoke Zero Halogen (LSZH) or Eca‑rated PVC jacket for safer deployment in indoor environments — minimizing toxic emissions in the event of fire and ensuring compliance with fire safety regulations.
Robust Construction: Built for indoor horizontal cabling, wall‑ and ceiling‑mounted installations, and backbone network infrastructure.
PoE Compatible: Suitable for use with PoE+ and higher‑power PoE standards (IEEE 802.3bt), enabling network‑powered devices such as access points, cameras, and VoIP phones.
Technical Specifications
Specification | Details |
|---|---|
Category | Cat6 |
Conductor | 4 pairs, 23 AWG Solid Bare Copper |
Insulation | Polyethylene (PE) |
Jacket | LSZH or Eca PVC |
Construction | U/UTP (Unshielded) |
Characteristic Impedance | 100 Ω |
Frequency | Up to 250 MHz |
Operating Temp. | −20 °C to +75 °C |
Nominal Diameter | ~5.8 mm |
Bend Radius | 24–28 mm (typical) |
Compliance | ANSI/TIA‑568.2‑D, ISO/IEC 11801, IEEE 802.3 |
Suitable Applications | Gigabit Ethernet, structured cabling horizontal runs, PoE deployments |
Ideal For
Office networks: Reliable backbone and horizontal cabling for workstations, servers, and VoIP devices.
Commercial buildings: High‑performance structured cabling installations that demand long‑term stability.
Data centers & server rooms: Supporting robust network links and PoE devices.
LAN infrastructure: Suitable for wired Ethernet up to Gigabit speeds and beyond.
Why Choose Belden Cat6 Cable?
Belden sets industry benchmarks for engineered cabling solutions. Their Cat6 UTP cables are manufactured to precise tolerances, ensuring consistent performance across every installation. The solid copper design delivers low attenuation and superior signal integrity, while the jacket options provide flexibility for different regulatory environments. Whether you’re upgrading existing infrastructure or running new builds, Belden Cat6 cables give you future‑ready performance and peace of mind.
